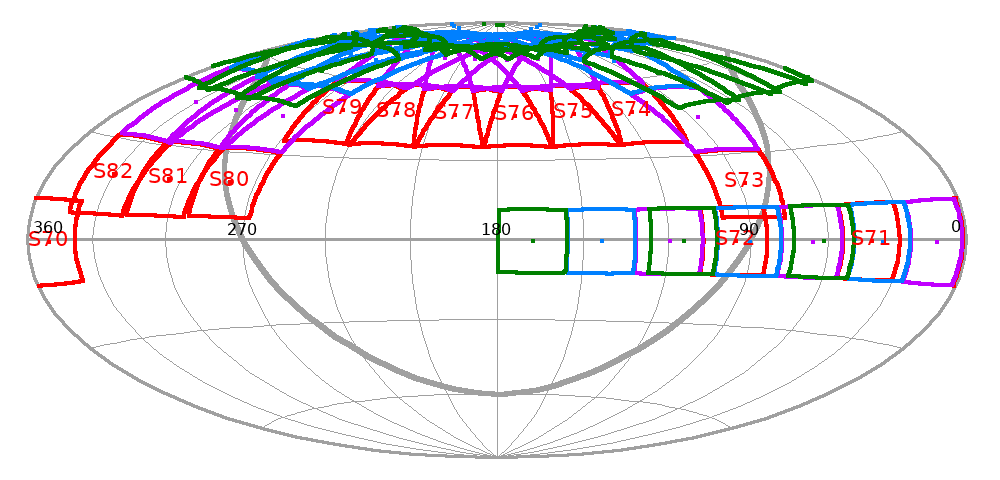

The tables below contains the details of TESS spacecraft orientation for Year 6. Columns are Sector number, Start and End dates of Sector, then (RA, dec, roll) in degrees (J2000) of the spacecraft and four camera boresights. Note: These values are provisional and may be changed, although there are currently no plans to do so.
Sector | Dates | Spacecraft | Camera 1 | Camera 2 | Camera 3 | Camera 4 | |
---|---|---|---|---|---|---|---|
70 | 09/20/23-10/16/23 | 24.04, 9.26, 291.30 | 350.71, -4.62, 22.70 | 12.83, 4.76, 22.67 | 35.53, 13.41, 199.03 | 59.67, 19.93, 192.00 | |
71 | 10/16/23-11/11/23 | 77.34, 22.22, 275.00 | 40.03, 14.98, 17.32 | 64.55, 20.68, 9.69 | 90.32, 22.75, 180.02 | 116.10, 20.69, 170.34 | |
72 | 11/11/23-12/07/23 | 133.76, 16.65, 254.03 | 95.97, 22.75, 357.22 | 121.51, 19.58, 347.85 | 145.60, 13.03, 160.99 | 168.29, 4.41, 157.49 | |
73 | 12/07/23-01/03/24 | 80.67, 78.83, 8.03 | 87.11, 42.92, 92.12 | 84.92, 66.89, 93.95 | 327.32, 88.19, 31.22 | 271.88, 65.01, 86.33 | |
74 | 01/03/24-01/30/24 | 261.22, 72.30, 213.92 | 137.52, 66.78, 64.51 | 220.12, 79.83, 343.99 | 275.32, 61.57, 110.87 | 286.00, 38.50, 102.52 | |
75 | 01/30/24-02/26/24 | 254.93, 69.94, 247.49 | 171.87, 56.84, 54.60 | 218.55, 71.10, 11.91 | 280.01, 63.06, 134.38 | 302.93, 43.06, 115.70 | |
76 | 02/26/24-03/26/24 | 253.53, 66.84, 276.64 | 196.64, 45.81, 55.91 | 226.62, 62.86, 31.10 | 283.20, 65.34, 159.42 | 319.88, 50.40, 127.80 | |
77 | 03/26/24-04/23/24 | 255.86, 63.86, 302.34 | 218.00, 35.99, 62.60 | 237.55, 56.00, 48.26 | 283.80, 67.98, 186.73 | 337.36, 59.86, 137.85 | |
78 | 04/23/24-05/21/24 | 260.42, 61.57, 325.71 | 238.24, 28.71, 72.20 | 249.67, 51.12, 64.71 | 280.85, 70.39, 216.96 | 357.65, 70.50, 143.46 | |
79 | 05/21/24-06/18/24 | 266.06, 60.30, 347.51 | 258.01, 24.74, 83.22 | 262.17, 48.51, 80.69 | 274.36, 71.85, 249.88 | 33.61, 80.77, 131.93 | |
80 | 06/18/24-07/15/24 | 275.70, 32.23, 5.49 | 278.93, -3.64, 94.65 | 276.91, 20.28, 94.95 | 274.11, 44.17, 276.48 | 267.10, 67.88, 282.42 | |
81 | 07/15/24-08/10/24 | 292.57, 34.69, 17.13 | 302.54, -0.09, 104.02 | 296.39, 23.16, 105.27 | 287.51, 46.06, 290.43 | 265.96, 67.26, 308.80 | |
82 | 08/10/24-09/05/24 | 309.13, 39.78, 27.80 | 325.16, 6.78, 111.16 | 315.49, 28.98, 114.19 | 300.44, 50.10, 303.97 | 265.65, 66.52, 334.11 | |
83 | 09/05/24-10/01/24 | 325.89, 47.12, 37.05 | 347.50, 15.88, 115.23 | 334.93, 37.15, 120.95 | 312.93, 56.07, 317.26 | 266.16, 65.80, 358.80 |
